Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock
Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock
Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock
接触

Jointech Jt802 Oil Tanker Truck Security Monitoring Lock Cargo Guard GPS Oil Tank Valve Lock

最小注文数量 : 1 ユニット 価格 : 488-500 USD per unit
パッケージの詳細 : カートン 受渡し時間 : 5~8日
支払条件 : T/T,ウェスタン・ユニオン,L/C 供給の能力 : 月100000台
起源の場所: 中国 ブランド名: Jointech
証明: CE, ROHS, FCC, UN38.3. MSDS モデル番号: シール盗難防止弁ロックを追跡するJT802石油タンカーGPSの保証

詳細情報
特徴: 、GPRSの遠隔追跡置くの実時間GPS弁ロック 適用:: ガス、重油のタンカー、タンク車の監視
位置設定モード: 12ヶ月 支援: 0.35~20m オーダーメイド
ネットワーク: ロープ カットの低い電池 バッテリー: シールの追跡者ロック
次元/重量: エンジニアリングプラスチック 保護等級および証明書: IP65 防水 CE,FCC,爆発防水 RoHS
応用シナリオ: 盗まれたオイル/燃料/危ない液体を防ぐために危ない液体を監視しなさい 材料: アルミ合金
ハイライト:

GPS オイルタンク バルブロック

,

貨物ガードオイルタンクバルブロック

,

油タンカーセキュリティ監視ロック

製品の説明

Jointech Jt802 Explosion Proof GPS Anti-Oil Stealing Valve Lock

Product Description

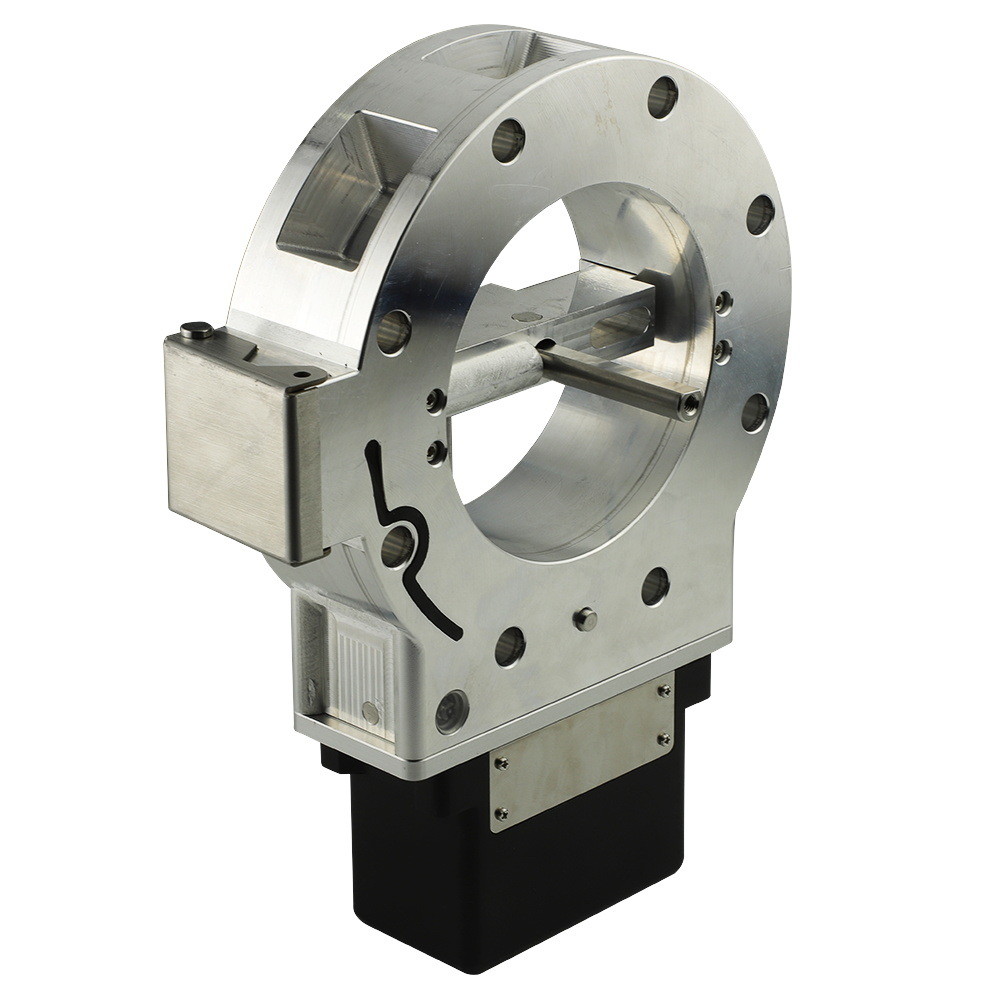

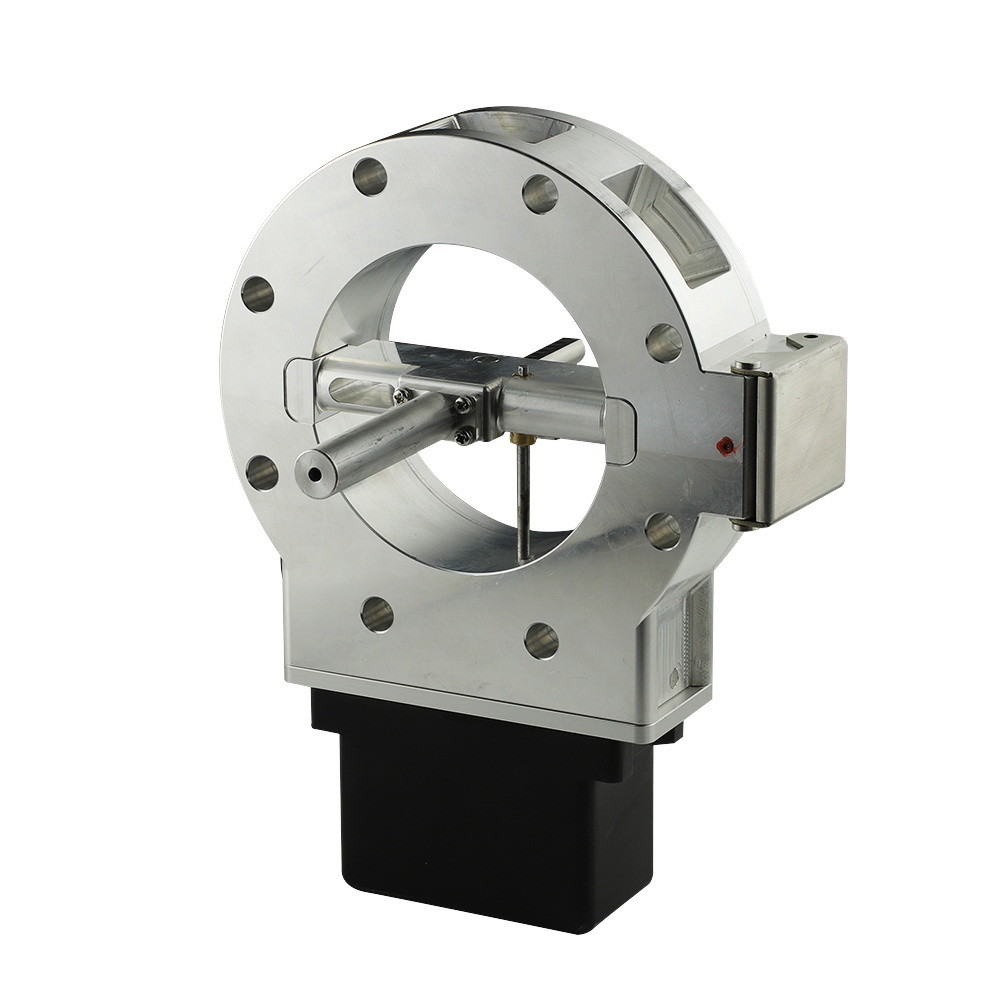

JT802 Tank Truck Smart Valve Lock is a sub-lock used with JT701D. It is equipped with a disposable lithium-manganese battery, low power consumption, can be used for a long time( two years if the lock is on and off ten times a day).

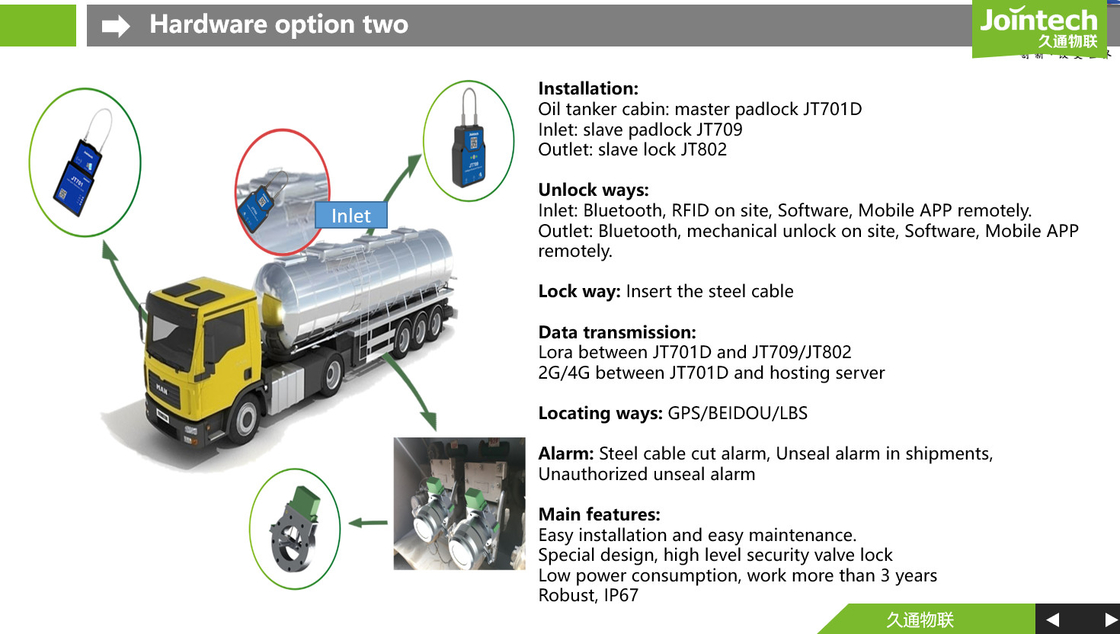

JT701D is the main lock, and JT802 is the sub-lock. The two are used together to monitor one valve or multiple valves of tank trucks.

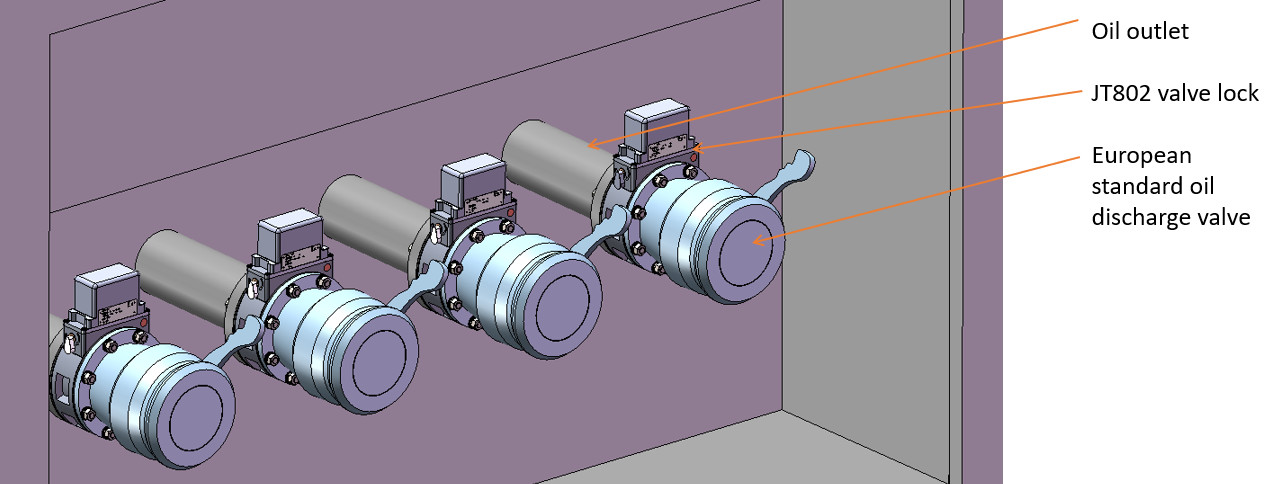

The main lock JT701D provides high-precision real-time/timing tracking information, supports remote online or on-site Blue tooth offline unlock mode, and supports real-time tracking information such as historical trajectory playback, geofencing, valve lock status and alarms on different platforms. The sub-lock JT802 controls the inlet/outlet of oil of the oil tanker and sends the data to main lock.
Communication between JT701D and JT802 is via LoRa. When one or several sub-locks JT802 are switched on or off or destroyed, the master lock JT701D receives the data and transmits the data to the platform in real time. You can monitor this from your phone or computer.

JT802 has passed explosion-proof certification(IECEx: Ex ib IIB T4 Gb ATEx: II 2 G Ex ib IIB T4 Gb) and is adapted to explosion-proof handheld terminals, which can control equipment through handheld terminals and cloud platforms at the same time, creating a safer, more efficient and more intelligent mobile asset positioning management program for customers.

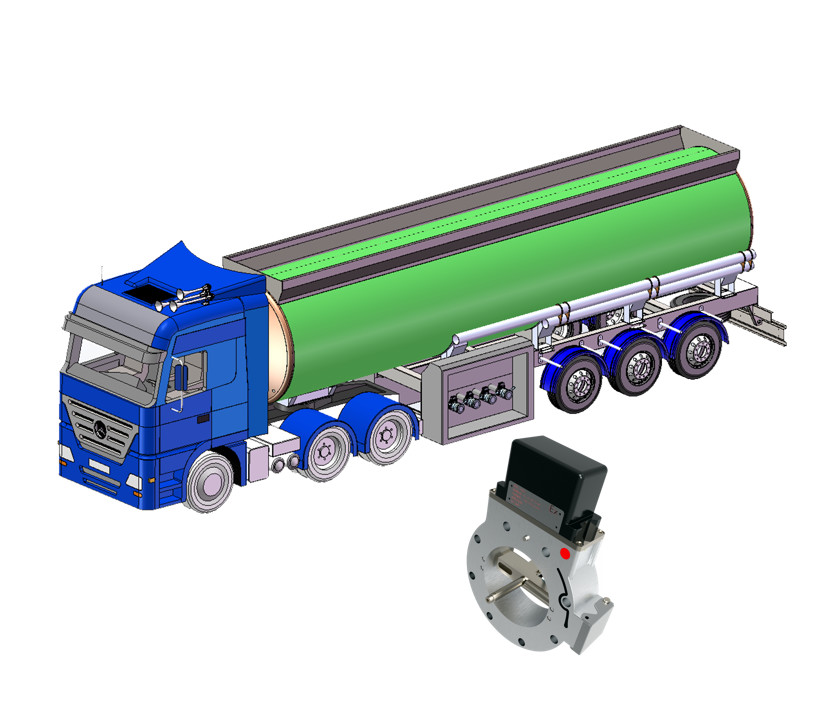

It is suitable for GPS tracking of tank trucks and tank assets, explosion proof GPS tracker for oil & fuel & gas assets tracking.

Jointech exclusive invention and production.



If you have any project ongoing, please let us know.
Your inquiry is welcome.

Size 248.5*190.1*165 (mm)
Weight About 2.4 kg
Battery 4000mAh, disposable Lithium manganese battery(can beused for 2 years if the lock is on and off ten times a day)
Shell Material Aluminum alloy, PA66+ glass brazing, oil-proof material
Network 2G 3G 4G
Positioning GPS+BDS+LBS
Transmission mode LoRa/BLE
Data encryption AES
Protection Class IP67
Working Temperature -30 Celsius degrees - 70 Celsius dergrees
